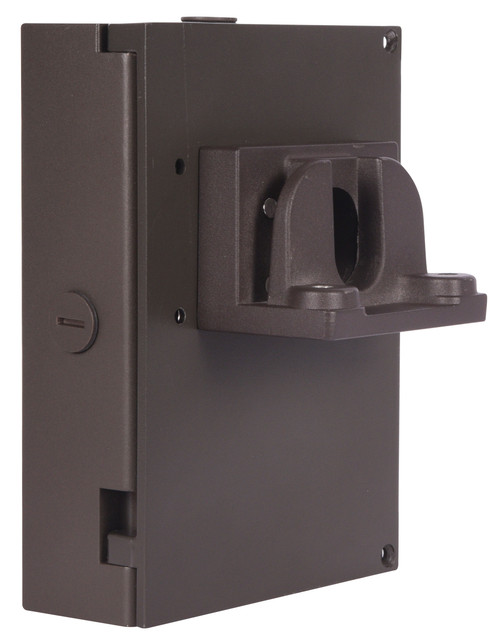

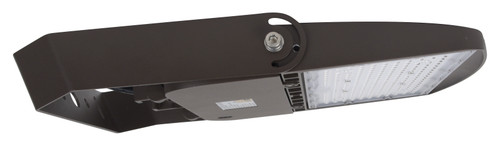

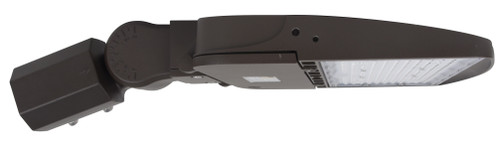

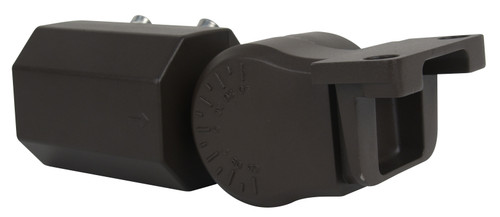

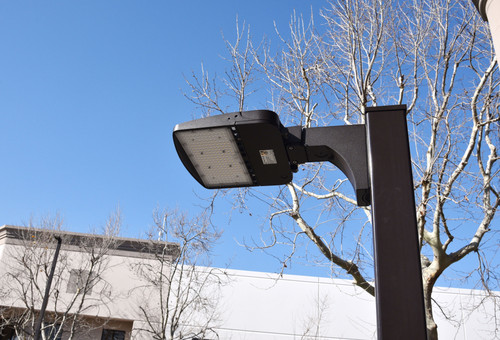

LED Compact Area Light 150W Front View (LED Compact Area Light 150W ) Fixture with 8" Pole Mount 8" Pole Mount Fixture with Slip Fitter Slip Fitter Mount Fixture with Wall Mount Wall Mount Fixture with Yoke Mount Yoke Mount LED Compact Area Light Application

150W Bronze LED Parking Lot Light-Area light

400-575W equivalent, 120~277 Voltage, IP65 rating, Outdoor Wet Location, NEMA Type 3 Beam Angle, 50,000 Life Hours

$162.82 - $207.20
(0) Write a Review
  • SKU:
    CLT-PLA-150W-BZ-40
  • Item #:
    CLT-10008
  • Wattage:
    150W
  • Voltage:
    120~277V
  • Lumens:
    21,000-21,150
  • CCT:
    40K or 50K
  • Dimmable:
    1-10V

Details

This state-of-the-art LED Compact Area Light is made of robust die-cast aluminum and has a great thermal design, making it the ideal lighting choice for your parking lot, street, pathway, building floodlight, and/or sign light. It replaces up to 575W HID lamps with uniform, consistent color. More wattage options are available under separate SKUs. This DLC Premium certified and IP65 rated fixture comes with the following mounting options: 8" Pole Mount, Slip Fitter, Yoke Mount, & Wall Mount.

Specifications

  • Item #:

    CLT-10008

  • SKU:

    CLT-PLA-150W-BZ-40

  • Fixture Type:

    Area Light

  • Color Finish:

    Bronze (Corrosion Resist. Powder Coating)

  • Material:

    Die Cast Aluminum

  • Wattage:

    150W

  • Voltage:

    120~277V

  • Lumens

    21,000-21,150

  • Replacement Wattage:

    400-575W

  • CCT:

    40K or 50K

  • CRI:

    >80

  • Dimmable:

    1-10V

  • Beam Angle:

    NEMA Type 3

  • Input Current:

    1.25 (@120V)

  • Power Factor:

    >0.9

  • THD:

    <20%

  • Surge Protection Level:

    6KV

  • Operating Temperature:

    -40?? ~ 113??F

  • Rated Life Hours:

    50,000

  • Length:

    13.14"

  • Width/Depth:

    12.4"

  • Height:

    2.42"

  • Weight:

    6.48 lbs

  • Warranty:

    5 year

  • Listings & Certifications:

    DLC Prem, UL, IK09

  • Accessories:

    Slip Fitter, Pole Mount, Wall Mount, Yoke Mount

  • UPC:

    -

Installation

Downloads

FAQs

Q:What material this fixture is made of?

This fixture is made of Die-Cast Aluminum.

Q: Is this product for wall or pole lighting?

The fixture can be used on both pole using slip fitter/pole mount arm or wall mount with yoke mount.

Q: What is the Voltage for these?

120-277V
