Details

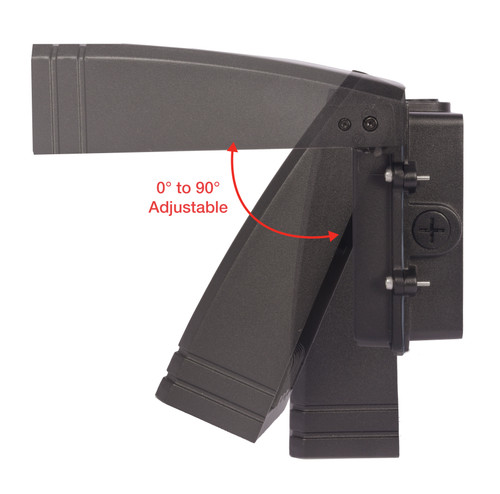

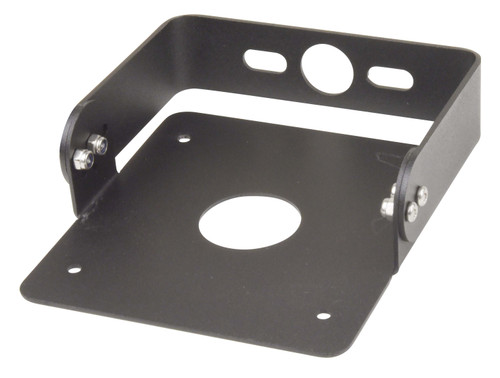

Our slim, low-profile cutoff wall pack is perfect for apartment buildings, low-level pathways, landscape areas, schools, and multi-use facilities. This fixture’s high-quality die-cast aluminum housing provides bright, crisp light and ensures long lasting performance over its rated life of 50,000 hours. Our DLC Premium, IP65 Rated, ETL Listed, and ADA Compliant fixture also comes with three mounting options: ¾” NPT Knuckle Mount, Swivel bracket, and Slip Fitter. Installation is made easy with an adjustable hinged junction box. More wattage options are available under separate SKUs. Finish also available in black under separate SKU.
Specifications
-
Item #:
CLT-10003
-
SKU:
CLT-WPA-28W-BZ
-
Fixture Type:
Slim Wall Pack
-
Color Finish:
Bronze -Corrosion Resistant Powder Coating"
-
Material:
Die Cast Aluminum
-
Wattage:
28W
-
Voltage:
120~277V
-
Lumens:
3,418 ~ 3,513
-
Replacement Wattage:
175W
-
CCT:
40K or 50K
-
CRI:
80
-
Dimmable:
1-10V
-
Beam Angle:
140??
-
Input Current:
0.29A
-
Power Factor:
0.9
-
THD:
<20%
-
Surge Protection Level:
4KV
-
Operating Temperature:
-22??F~122??F
-
Rated Life Hours:
50,000
-
Depth:
4"
-
Width:
6.6"
-
Height:
7.87"
-
Weight:
5.45 lbs
-
Warranty:
5 year
-
Listings & Certifications:
DLC Prem.
-
Accessories:
Sensor, Mounting
FAQs
This fixture is made of Die-Cast Aluminum.
Yes, these fixtures are suitable for outdoor wall lighting mounted on office building walls, recommended 8-10 feet in height.
ADA compliant products are designed to make their use easier, safer, and more comfortable for people with disabilities or limited mobility. The guidelines for ADA installation specify that a wall light be no more than 4-inches from the wall and be mounted between 2-feet 4-inches to 6-feet 8-inches above the finished floor. Following these guidelines and using an ADA approved lighting fixture offers maximum clearance.
