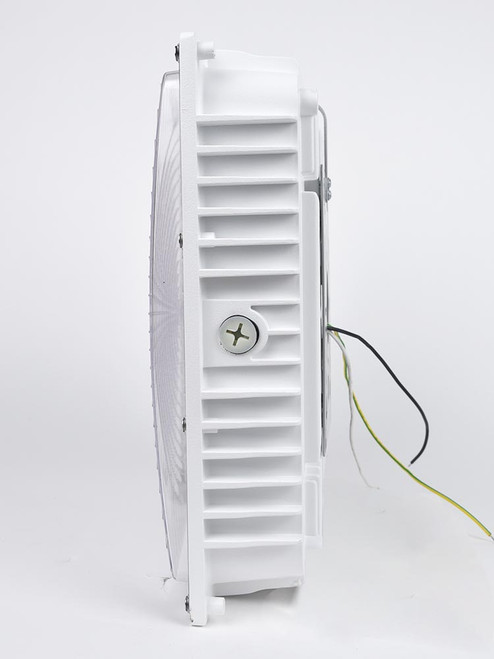

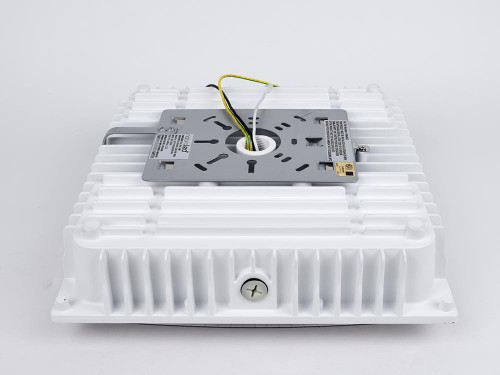

59W White LED Square Canopy and Garage Light

250W equivalent, 120~277 Voltage, IP65 rating, Outdoor Wet Location, 160?? Beam Angle, 50,000 Life Hours

$84.38
(0) Write a Review
  • SKU:
    CLT-SCG-59W-WH
  • Item #:
    CLT-10029
  • Wattage:
    59W
  • Voltage:
    120~277V
  • Lumens:
    6,794
  • CCT:
    40K
  • Dimmable:
    1-10V

Details

Our Square Canopy Garage Light is DLC Premium listed and ETL qualified for wet locations with a rating of IP65. Aesthetically pleasing construction, low-profile design with die-cast aluminum housing, and a shatter-resistant polycarbonate prismatic lens makes this fixture a one of a kind. It allows for a dustproof, sealed structure with ½” threaded conduit entrances on each side. This fixture comes with or without an integral microwave occupancy sensor, factory mounted behind the lens. The microwave occupancy sensor has multiple sensor settings that can be selected via dip switch at the sensor brain inside the fixture that include: daylight sensing, step dimming, area sensitivity, standby time and on/off functions. The canopy supports both pendant mounting and direct surface mounting for the ceiling and wall. The fixture can be pendant mounted, accepts a ¾” NPT thread, and can be mounted to multiple types of J-boxes for easy flexibility. Finish also available in black under separate SKU.

Specifications

  • Item #:

    CLT-10029

  • SKU:

    CLT-SCG-59W-WH

  • Fixture Type:

    Canopy Fixture

  • Color Finish:

    White -Corrosion Resistant Powder Coating"

  • Material:

    Die Cast Aluminum + PC

  • Wattage:

    59W

  • Voltage:

    120~277V

  • Lumens:

    6,794

  • Replacement Wattage:

    250W

  • CCT:

    40K

  • CRI:

    70

  • Dimmable:

    1-10V

  • Beam Angle:

    140??

  • Input Current:

    0.49A

  • Power Factor:

    .9124

  • THD:

    <20%

  • Surge Protection Level:

    2KV

  • Operating Temperature:

    -40??F ~122??F

  • Rated Life Hours:

    50,000

  • Length:

    9.65"

  • Width/Depth:

    9.65"

  • Height:

    3.35"

  • Weight:

    5.10 lbs

  • Warranty:

    5 year

  • Listing & Certification:

    DLC

  • Accessories:

    Sensor, Mounting

  • UPC:

    -

Installation
